Description
Key Features.
8-Input 3G-SDI 1080p60 Live Switcher
Integrated 2TB M.2 NVMe Storage
ISO Recording of All Eight Inputs
Supports Remote Internet Cameras
Streaming Support, USB & M.2 Recording
Blackmagic Cloud Integration
Up to 16 Multiview Output Sources
Audio Mixing, Transitions, T-Bar, AUX
Customizable Electronic LCDs
Camera Control, Timecode, Talkback
Mix Effects
Available M/E Layers
8 M/E
Effect Types
1x DVE, Stinger
4x Chroma Key
7x Luma Key
Downstream Keys
2x Chroma, Luma, DVE
Generators
7x Pattern
2x Color
Audio Mixing
58-Channel Mixing
Processing
Switching Type
Pushbutton, Software, T-Bar
Processing Resolution
1080p at 60
Color Processing
10-Bit 4:2:2 RGB
Input
Number of Video Input Sources
8
Video Inputs
8x BNC (3G-SDI) Female
Input Video Format
SDI (10-Bit 4:2:2 RGB)
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
1080i at 50/59.94/60 fps
720p at 50/59.94/60 fps
Audio Inputs
1x BNC MADI Female
1x 2RCA Stereo Analog Female
2x XLR 3-Pin Analog Female
Embedded Audio Input
SDI: 4-Channel (per Input)
Output
Video Output Channels
12
Video Outputs
12x BNC (3G-SDI) Female
2x USB-C (USB Video) Female
Output Video Format
SDI (10-Bit 4:2:2 RGB)
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
1080i at 50/59.94/60 fps
720p at 50/59.94/60 fps
USB-C (10-Bit 4:2:2 RGB)
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
720p at 50/59.94/60 fps
Audio Outputs
4x 1/4" TRS Analog Female
1x BNC MADI Female
Embedded Audio Output
SDI: 2-Channel (per Output)
Multiview Output
16-Way Multiview
Monitor Output
1x HDMI

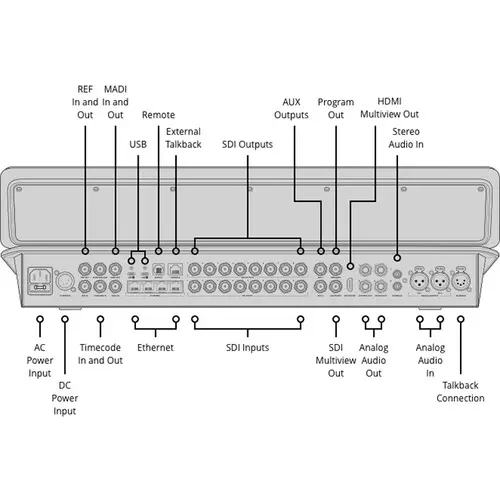

Connectivity
Other I/O
1x XLR 5-Pin Talkback Input
1x XLR 5-Pin Talkback Output
1x BNC Timecode Input
1x BNC Timecode Output
1x BNC Reference Input
1x BNC Reference Output
4x RJ45 LAN Input/Output
1x RJ12 RS-422 Input/Output
2x USB-C 3.0 / 3.1/3.2 Gen 1 Input/Output
Video Standard Compliance
SMPTE 292M/296M/424M/425M-A/425M-B
IP Encoding/Decoding
IP Video
H.264:
1920 x 1080 at 60p Encoding
Transport Protocols
RTMP, TCP/IP
Internal Recording
Internal Storage
2 TB
Hardware
OS Compatibility
macOS 14 or Later / Windows 10 or Later
Processor
Not Specified by Manufacturer
Wireless
No
Power
Power I/O
1x IEC C14 (100 to 240 VAC ) Input
1x XLR 4-Pin (12 VDC ) Input
Power Consumption
Device: 100 W
General
Operating Conditions
32 to 104°F / 0 to 40°C up to 90% Humidity
Storage Conditions
-4 to 140°F / -20 to 60°C up to 90% Humidity

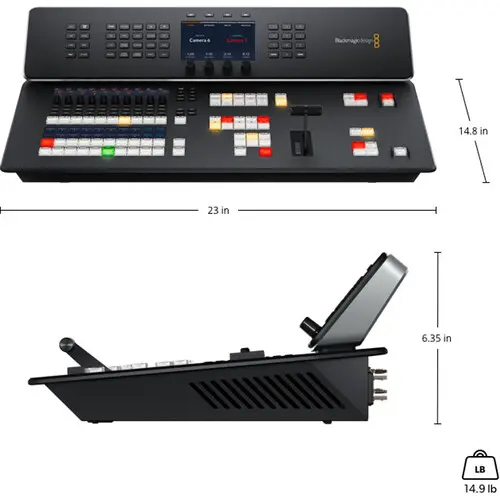

Dimensions
23 x 14.8 x 6.35" / 58.4 x 37.6 x 16.13 cm
Weight
14.9 lb / 6.8 kg
