TELYCAM EXPLORE SE 4K60p PTZ CAMERA - WHITE COLOR

High-Performance Sensor and Image Processor

The Explore SE boasts a Sony 1/1.8-inch 9MP CMOS sensor and a state-of-the-art image processor, to deliver stunning UHD images that capture realistic colors and maintain rapid focus.

NDI® and NDI®HX Support

The Explore SE camera supports both NDI® and NDI®|HX, offering flexible, high-efficiency video streaming options. NDI® provides high-quality, low-latency video over IP networks, while NDI®|HX optimizes bandwidth usage for smoother performance in network-constrained environments. This dual support ensures robust and adaptable connectivity for diverse broadcasting needs.

High-Speed 12G-SDI for Professional 4K Video

The Explore SE camera features 12G-SDI, a high-speed video interface capable of transmitting 4K video at 60 frames per second over a single cable. This ensures uncompressed, high-quality video output with minimal latency, making it ideal for professional broadcasting and live event production. The 12G-SDI connection also supports longer cable runs without signal degradation, providing reliable performance in demanding environments.

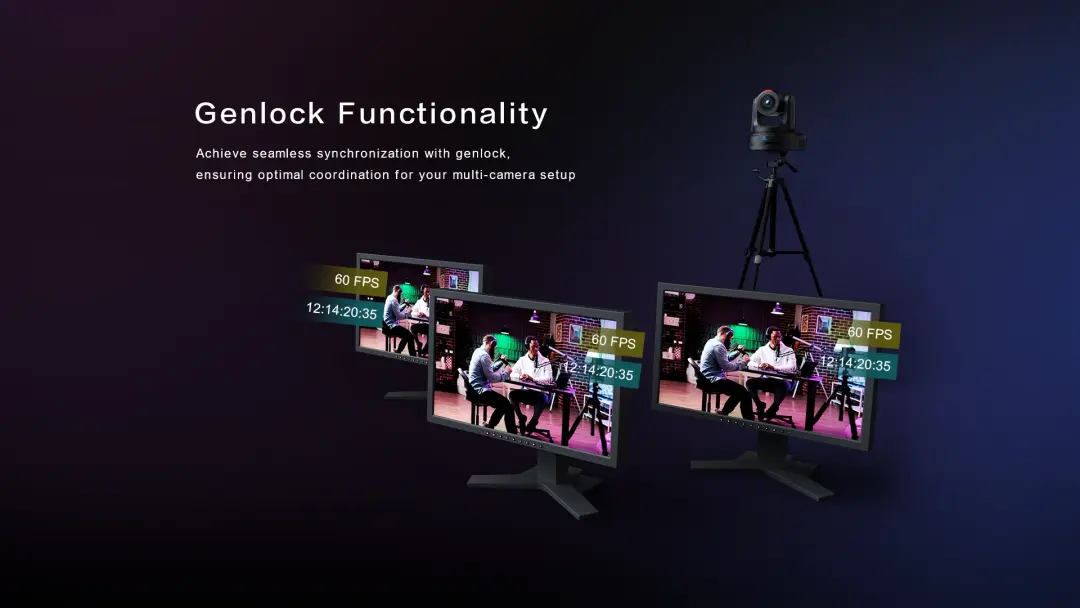

Genlock Ensures Seamless Synchronization for Multi-Camera Productions

In multi-camera productions, Genlock (generator lock) ensures seamless switching and compositing of video sources. This synchronization technique provides a reference signal, typically from a dedicated generator or a master camera, guaranteeing all connected devices capture frames at precisely the same time. This prevents tearing and inconsistencies during video production and editing. The Explore SE features Genlock for superior synchronization, allowing it to function as the main camera and ensure precise video synchronization with sub-cameras in broadcasting and live streaming setups.

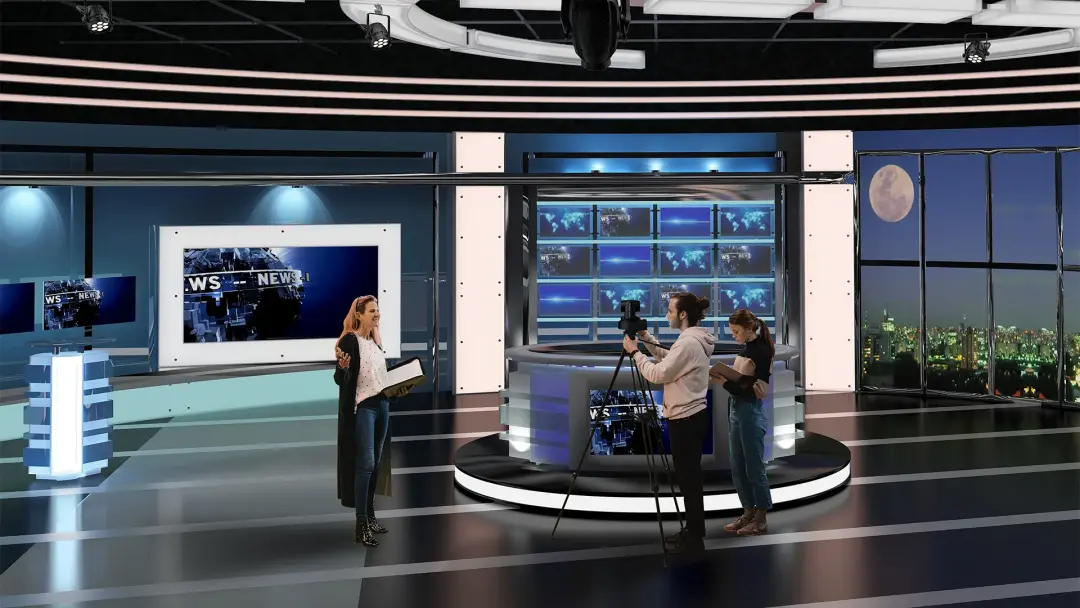

FreeD Integration Unlocks Immersive Virtual Productions

FreeD is a protocol that enables precise transmission of Pan, Tilt, Zoom, and Focus (PTZF) data directly from the camera to tracking system. Widely supported by most virtual set systems, FreeD makes virtual productions easier than ever. The Explore SE seamlessly integrates FreeD technology, empowering users to explore dynamic shooting angles and perspectives, ideal for versatile real-world and virtual-world applications. Explore SE’s broad compatibility with industry-leading virtual set systems like Brainstorm, Vizrt, Zero Density, Aximmetry, Unreal Engine, and VSet3D ensures a smooth workflow for all your virtual production needs.

Robust Audio Capabilities

The Explore SE features 3.5mm line-in and Mini XLR with Phantom power, providing compatibility with various microphones and audio

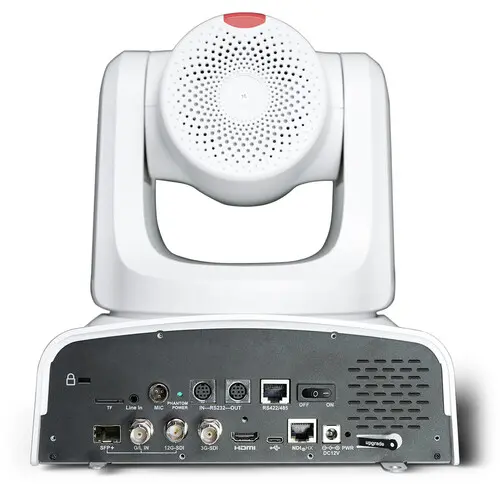

Versatile Output Options

This Explore SE offers diverse output options, ensuring 4K60p output through NDI®, NDI®HX3, 12G-SDI, HDMI, and SFP+. It provides great flexibility and compatibility to Telycam users. Note that USB and NDI cannot output simultaneously.

Specifications

Camera

• Part NO. TLC-900-IP-30-4K(NDI)-AB

• 1/1.8 inch, 9MP UHD CMOS sensor

• 30X optical zoom

• Lens: f=6.91~214.64mm, F1.35~F4.6

• Horizontal View Angle: 63°(Wide)~2.1°(Tele)

• Vertical Viewing Angle: 34.14°~1.12°

• Diagonal Viewing Angle: 67.08°~2.27

• Minimum Working Distance: Wide: 30cm; Tele: 150cm

• S/N Ratio: ≥50dB

Image Parameters

• Noise Reduction: 2D&3D

• Minimum lux: 0.5Lux(50 IRE Max AGC, 1/30, F1.35)

• White Balance: Auto/Manual/ATW/Push
/Indoor/Outdoor/Color Temperature

• Exposure: Auto/Manual/Shutter Priority/Iris Priority/Brightness Priority

• Anti-Flicker: OFF, 50Hz, 60Hz

• Image Flip/Mirroring: Supported

• Focus/Iris/Electronic-shutter : Auto/Manual

• Gamma: Supported

• Backlight Compensation: Supported

Video Format

12G-SDI:
3840*2160P60/50/30/25
/59.94/29.97/
24/23.98;
1920*1080P60/50/30/25
/59.94/29.97/
24/23.98;
1920*1080I60/50/59.94; 1280*720P60/50/30/25
/59.94/29.97

3G-SDI(Crop Only):
1920*1080P60/59.94/50/30
/29.97/25/24/23.98;
1920*1080I60/59.94/50; 1280*720P60/59.94/50/30
/29.97/25

HDMI2.0:
3840*2160 P60/50/30/25/59.94/29.97
/24/23.98;
1920*1080P60/50/30/25
/59.94/29.97/24/23.98;
1920*1080I60/50/59.94; 1280*720P60/50/30/
25/59.94/29.97

NDI® / NDI®HX3:
Main Stream: 3840*2160P15~60; 1920*1080P15~60;
1280*720P15~60; 1024*576P15~60;
Sub Stream: 640*360P15~30

SFP+:
3840*2160 P60/50/30/25/59.94/29.97/
24/23.98;
1920*1080P60/50/30/25
/59.94/29.97/24/23.98;
1920*1080I60/50/59.94; 1280*720P60/50/30
/25/59.94/29.97

USB Type-C:
NV12: 1920*1080P5; 1280*720P15; 1024*576P25; 800*448P30
YUYV: 1920*1080P5; 1280*720P15; 1024*576P25; 800*448P30
MJPG: 3840*2160P30; 1920*1080P60; 1280*720P60;
1024*576P60; 800*448P60
H264/H265: 3840*2160P30; 1920*1080P60; 1280*720P60;
1024*576P60; 800*448P60
